Concealed Hinge Jig

The Concealed Hinge Jig makes installing cabinet doors using concealed hinges much easier for onsite work. With the NEW easy-to-use jig, you get drill-press accuracy using a standard drill. The jig ensures accurate hinge alignment, for doors that fit perfectly. Plus, the Concealed Hinge Jig comes with a high-quality carbide-tipped bit with a built-in stop collar. Indexing cams for easier jig positions at the required offset - which is dictated by each hinge. A pair of smaller holes also allow drilling perfectly-positioned holes for the hinge mounting screws, making sure that the hinge will fit accurately every time.

Includes:

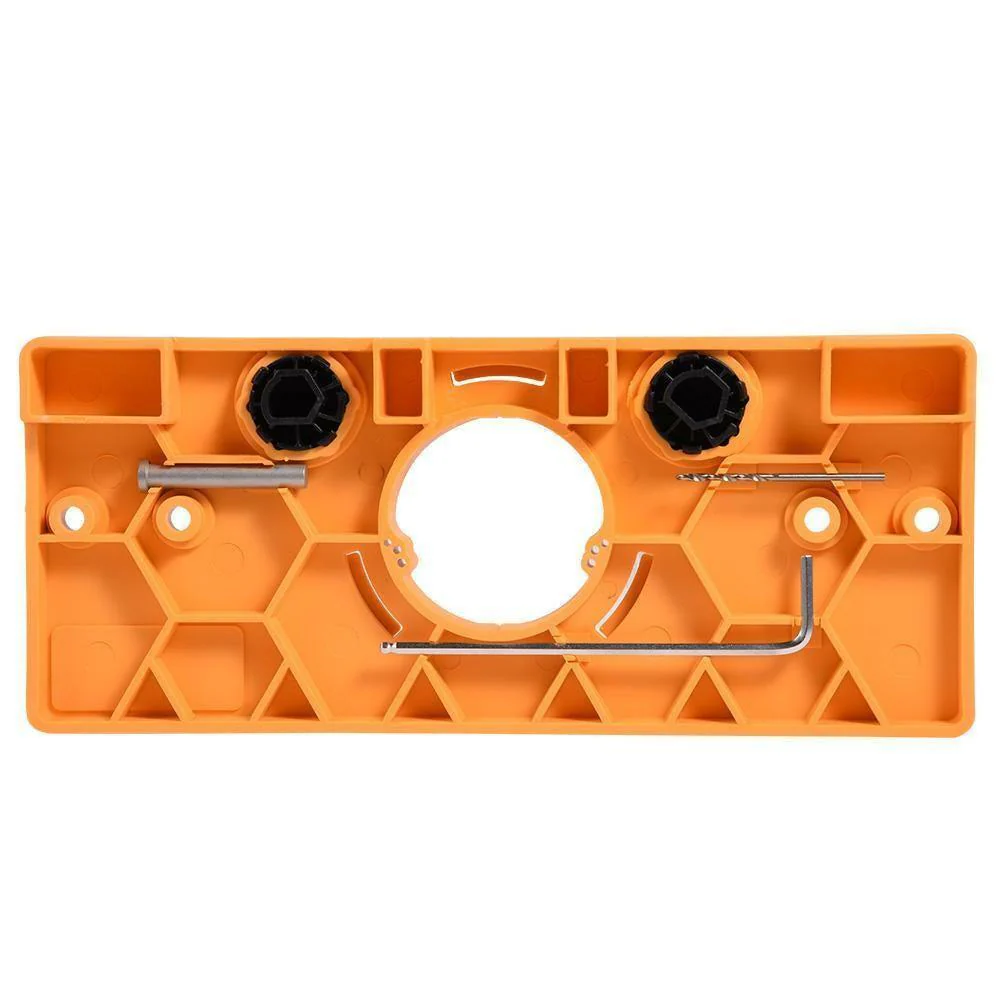

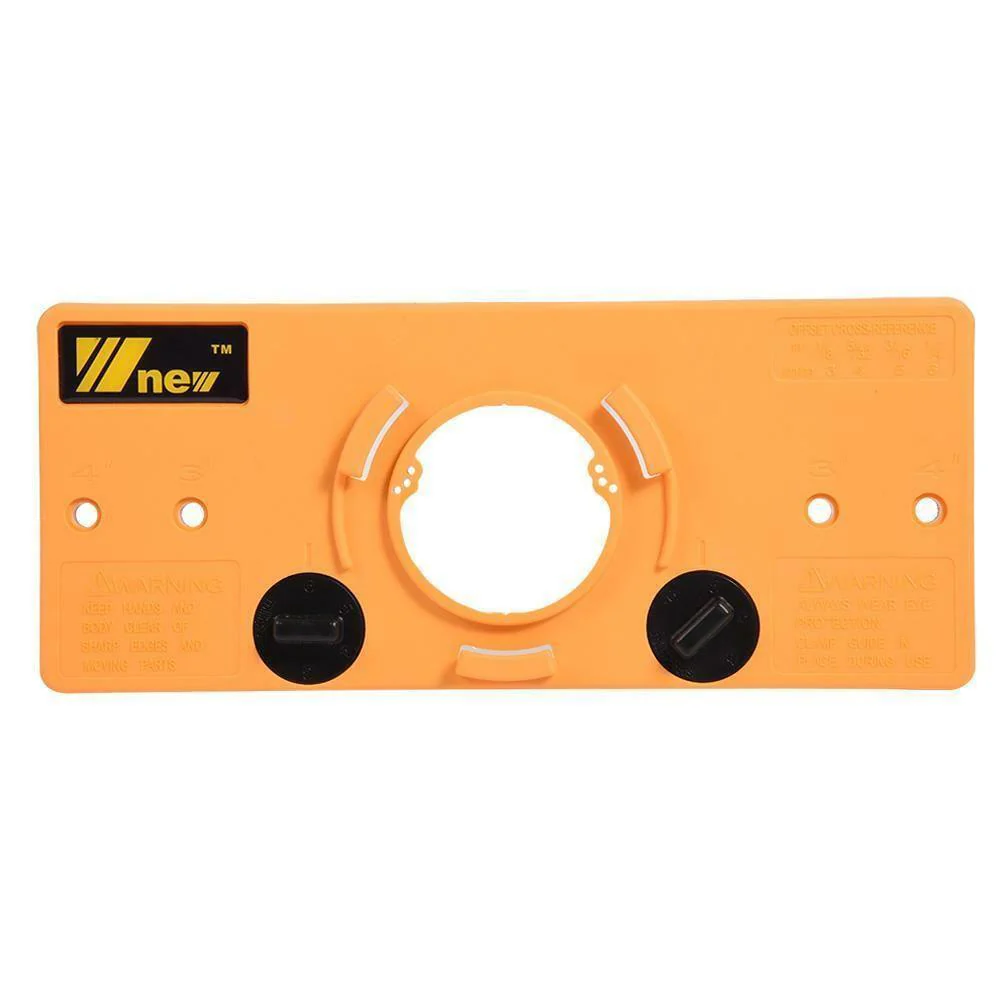

• 1 x Jig base with index cams

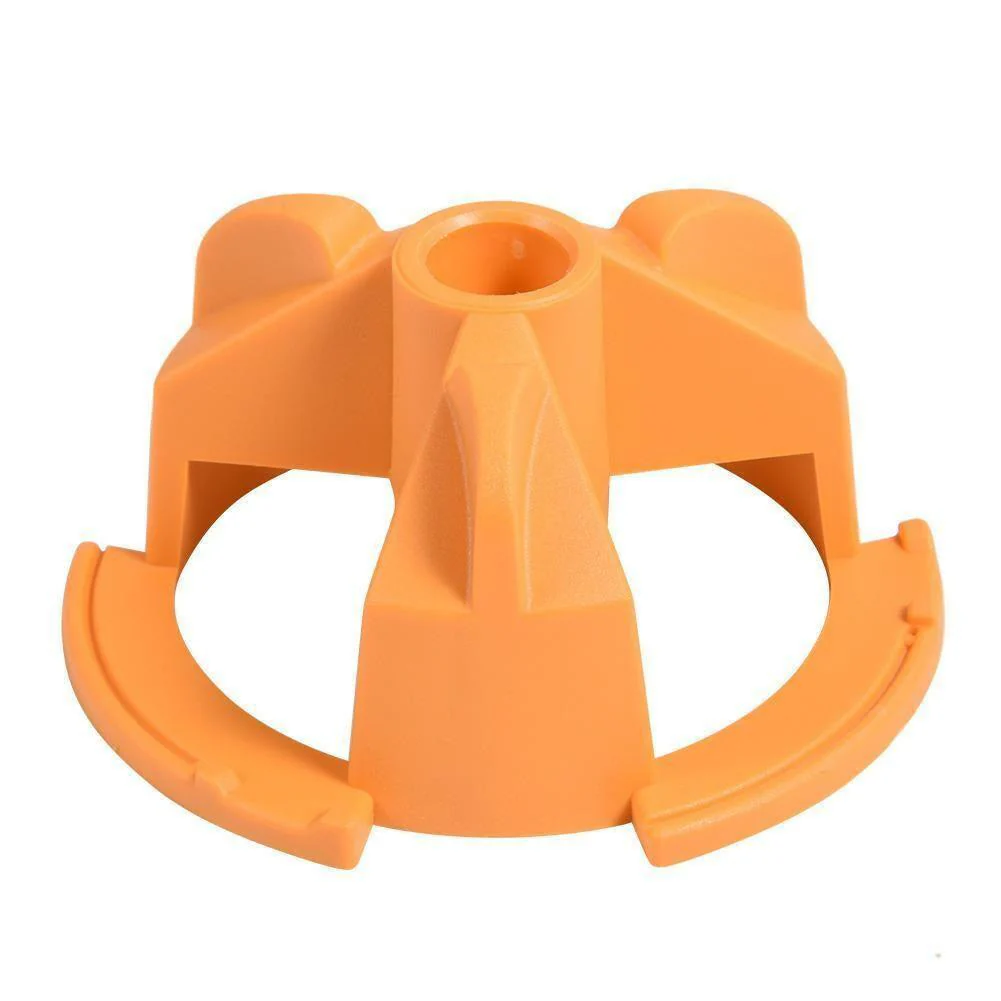

• 1 x Drill guide

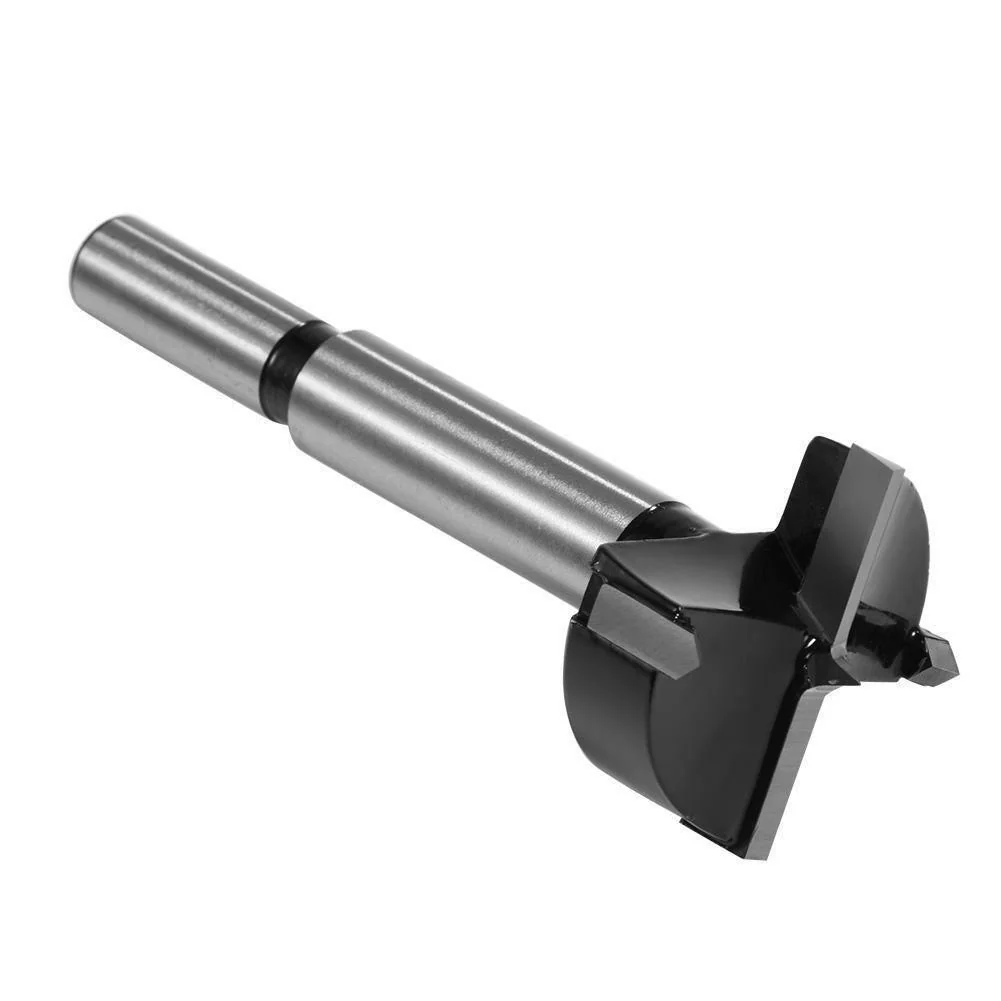

• 1 x 35mm carbide-tipped drill bit

• 1 x 3mm pilot drill bit

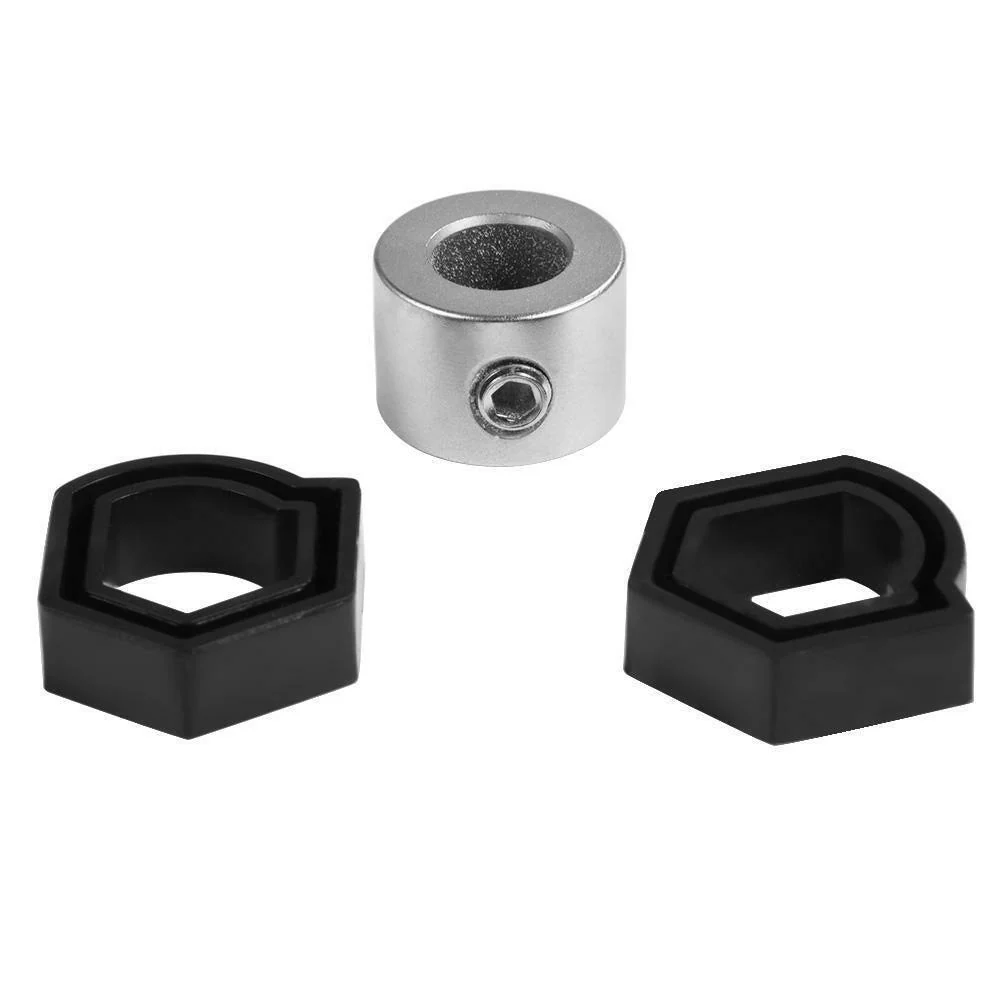

• 1 x Stop collar with Hex wrench

• 1 x Owner’s manual

Features:

• Accurate hinge positioning with built-in indexing tabs

• Repeatable results with built-in measuring scales

• Reliable drilling with bit guide and stop collar

• Simple to use with any drill—no special tools needed

• Adjustable cams ensure proper hinge offset

• Durable carbide-tipped drill bit included

• Strong, lightweight materials for easy handling

Specifications:

• Hinge compatibility: 35mm cup-style concealed hinges

• Hinge offset: 3mm, 4mm, 5mm, 6mm

• Drill bit, four-cutter carbide tipped with stop collar

• Hinge offset from door end: 2'' (50mm) to unlimited
